Product Details
Place of Origin: Shandong China
Brand Name: ZGMC
Certification: ISO TUV SGS BIS CE
Model Number: Stainless Steel Tube
Payment & Shipping Terms
Minimum Order Quantity: 3Tons
Price: negotiation
Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time: 5-15days depend on the quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability: 5000Tons Per Months
Application: |
Chemical Industry/Food Industry |
Processing Service: |
Cutting |
Material: |
Stainless Steel 201 309 304 304L 316 316L |
Welding Line Type: |
Seamless,welded |
Outer Diameter: |
16mm-2000mm |
Thickness: |
0.8mm-20mm |
Surface: |
Polishing Or Mirror Polish |
Standard: |
JIS, AISI,ASTM, GB, DIN, EN, Etc |
Packing: |
Bundle,wooden Box |
Ends: |
Plain Ends Or Beveled Ends |
Application: |
Chemical Industry/Food Industry |
Processing Service: |
Cutting |
Material: |
Stainless Steel 201 309 304 304L 316 316L |
Welding Line Type: |
Seamless,welded |
Outer Diameter: |
16mm-2000mm |
Thickness: |
0.8mm-20mm |
Surface: |
Polishing Or Mirror Polish |
Standard: |
JIS, AISI,ASTM, GB, DIN, EN, Etc |
Packing: |
Bundle,wooden Box |
Ends: |
Plain Ends Or Beveled Ends |

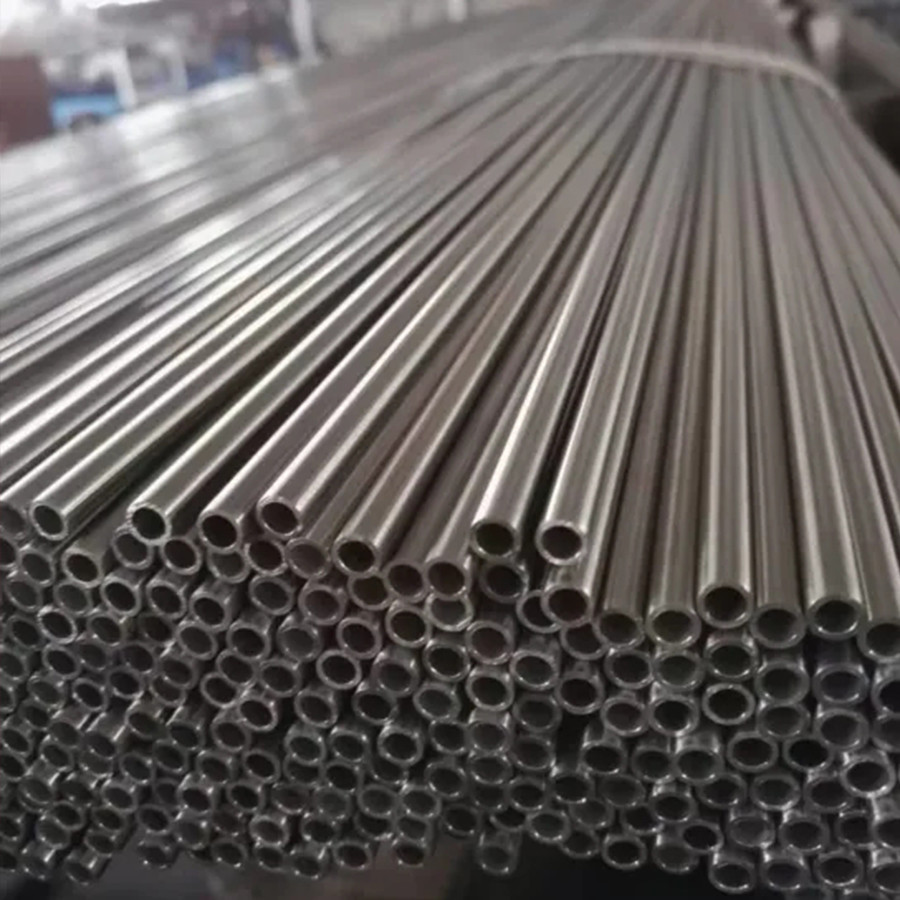

ASTM A269 A312 SUS 304 316 309 201 304L 316L Industrial Welded / Seamless Stainless Steel Pipe
Product description:
The inner wall of the our pipeline is smooth and not easy to scale, so it is not easy to be infected
by bacteria, reduce coliform bacteria poisoning and other hazards.And it ensures the safety of drinking.
Stainless steel tube is 3 times stronger than steel pipe and 8-10 times stronger than plastic pipe,
which is not easy to leak. Stainless steel pipes are also resistant to damage in earthquakes
because they are impact resistant.
Stainless steel tubing has low thermal conductivity, the thermal insulation performance is five
times that of copper pipe, so it is also suitable for application in high temperature fluid.
| Material | Stainless Steel 304 316 309 201 304L 316L |
| Shape | Round / Square |
| Production Standards | ASTM A270, ASTM A269, ASTM A249, ASTM A778, ASTM A789, DIN 11850, EN 10357, EN 10217-7 and so on. |
| Outer Diameter | 16mm - 2000mm ; |
| Thickness | 0.8mm - 20 mm ; |
| Length | 6 Meters - 18.3 Meters ; As customers' request ; |
| Tolerance | According to the Standard , +/-10% Commonly ; |
| Surface Treatment | 180#, 320#, 400# Satin / Hairline, Bright Anneal, Pickle,400#, 500#, 600# or 800# Mirror finish |
| Application | Petrochemical Industry ; Chemical Fertilizer Industry ; Oil Refining Industry ; Oil And Gas Industry ; Light Industry And Food Industry ; Pulp And Paper Industry ; Energy And Environmental Industries . |
| Test | Flaring test ; Flattening test ; Bending Test ; Hydraulic Test ; Eddy Current test |
| Design | OEM / ODM / Customized |
| Certificate | ISO9001 ; ISO14001; ISO 18001; TUV ; |
Product details:
Chemical composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
| 202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
| 301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 -3.0 |
| 321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
| 630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.03 | 0.19 -0. 22 | 0. 24 -0 . 26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 | - |
Products application:
Packing and shipping:
FAQ:
Q1. What are your company's main products ?
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.
Q3: What is the terms of packing?
A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.
Q4:What is your delivery time?
A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5. What are the advantages of your company ?
A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q6. How many coutries you already exported ?
A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
Q7. Can you provide sample ?
A7: We can provide the samll samples in stock for free, as long as you contact us.
Customized samples will take about 5-7days.
